PA UT (PAUT): Applications Store


Thanks to their unique smart, flexible, and "teachable" architecture combined with the outstanding ultrasonic performance ISONIC 3510T / ISONIC 3510, ISONIC 2010, and ISONIC 2009 UPA Scope have been the ideal platforms for practically unlimited number of standard and customized inspection software applications, the number of which is increasing permanetly.Each application is dedicated to the resolving of the inspection tasks related to the certain class of parts and materials to be tested (the similar shape parts varying by the overall dimensions and the dimensions of particular segments). Since the part to be inspected is outlined the scan plan is created just in few moments providing the True-to-Geometry Volume Corrected Coverage and imaging This makes it possible to inspect complex geometry parts easily while the non Sonotron NDT made phased array instruments are practically not applicable

Some PA UT applications are listed below

-   ISONIC EXPERT /// PAUT - Phased Array Ultrasonic Testing of the Planar and Circumferential (Girth) Welds - Symmetrical Bevel
-   ISONIC EXPERT_A /// PAUT - Phased Array Ultrasonic Testing of the Planar and Circumferential (Girth) Welds - Symmetrical and Asymmetrical Bevel, Unbeveled, Misaligned, etc
-   ISONIC EXPERT DMA /// PAUT - Phased Array Ultrasonic Testing of the Planar and Circumferential (Girth) Welds with Symmetrical Bevel made of CRA (Corrosion Resistant Alloys), Stainless Steel (Duplex, Super Duplex), and the like with use of the Dual Matrix Array (DMA) Probes
-   ISONIC EXPERT_A DMA /// PAUT - Phased Array Ultrasonic Testing of the Planar and Circumferential (Girth) Welds with Symmetrical and Asymmetrical bevel, Unbeveled, Misaligned, and the like made of CRA (Corrosion Resistant Alloys), Stainless Steel (Duplex, Super Duplex), and the like with use of the Dual Matrix Array (DMA) Probes
-   ISONIC EXPERT_TRANSIT /// PAUT - Phased Array Ultrasonic Testing of the Transition Welds - Symmetrical and Asymmetrical Bevel, Unbeveled, Misaligned, Inclined Welded Parts, etc
-   ISONIC EXPERT CU /// PAUT - Phased Array Ultrasonic Testing of the longitudinal seams (welds) with symmetrical bevel in the tubes, vessels, and the like AND/OR parent material in the tubes, pressure vessels, solid and hollow shafts, and the like for the longitudinal cracks - scanning from the OD surface
-   ISONIC EXPERT CU IN /// PAUT - Phased Array Ultrasonic Testing of the longitudinal seams (welds) with symmetrical bevel in the tubes, vessels, and the like AND/OR parent material in the tubes, pressure vessels, solid and hollow shafts, and the like for the longitudinal cracks - scanning from the ID surface
-   ISONIC DUET /// PAUT - Phased Array Ultrasonic Testing of butt (planar and cicumferential) and longitudinal welds using a pair of wedged linear array probes combining sector / linear scan pulse echo and TOFD techniques - scanning from both sides, strip chart recording and true to geometry imaging
-   ISONIC DUET M /// PAUT - Phased Array Ultrasonic Testing of butt (planar and cicumferential) and longitudinal welds using a pair of wedged linear array probes combining sector / linear scan pulse echo and TOFD techniques in combination with conventional TOFD and PE probes - scanning from both sides, strip chart recording and true to geometry imaging
-   ISONIC VLFS /// PAUT - Phased Array Ultrasonic Testing with Vertical Line Focusing Scanning (ERW, Rails, etc)
-   ISONIC VLFS CU /// PAUT - Phased Array Ultrasonic Testing with Vertical Line Focusing Scanning - Tubular Parts and Materials (Seamless Pipes, and the like)
-   ISONIC EXPERT FILLET /// PAUT - Phased Array Ultrasonic Testing of the Fillet (Straight and Skewed), Tee- , TKY- welds, and the like - Planar Cross Section Parts
-   ISONIC EXPERT FILLET CU /// PAUT - Phased Array Ultrasonic Testing of the Fillet (Straight and Skewed), Tee- , TKY- welds, and the like - Curved Cross Section Parts
-   ISONIC EXPERT CORNER /// PAUT - Phased Array Ultrasonic Testing of the Corner, Nozzle, L-Shape Welds - Planar Cross Section Parts
-   ISONIC EXPERT CORNER CU /// PAUT - Phased Array Ultrasonic Testing of the Corner, Nozzle, L-Shape Welds - Curved Cross Section Parts
-   ISONIC EXPERT Edge /// PAUT - Phased Array Ultrasonic Testing of the Open Corner and Edge Joints
-   ISONIC EXPERT LAP JOINT /// PAUT - Phased Array Ultrasonic Testing of the Lap Joints
-   ISONIC Tandem B-Scan /// PAUT - Phased Array Ultrasonic Testing: Detection of the Planar Vertical Defects (Cracks, LOF, and the like) in the Welds, Plates, etc
-   ISONIC EXPERT A-RING /// PAUT - Phased Array Ultrasonic Testing: Detection, Imaging, and Evaluation (Sizing) of the Corrosion Damages in Annular Rings of the Above Ground Storage Tanks
-   ISONIC MULTI A-SCAN /// PAUT - Phased Array Ultrasonic Testing: SRUT - Short Range Guided Wave Inspection with use of Linear Array Probes
-   ISONIC 3D-Scan S /// PAUT - Phased Array Ultrasonic Testing: SRUT - Short Range Guided Wave Inspection with use of Matrix Array Probes
-   ISONIC EXPERT FFC /// PAUT - Phased Array Ultrasonic Testing: Detection, Imaging, and Evaluation (Sizing) of the Flange Face Corrosion
-   ISONIC EXEPRT RADIUS-Scan /// PAUT - Phased Array Ultrasonic Testing of the Radius Corner Areas of the Complex Shaped Composites and Other Materials
-   ISONIC PA 0-deg B-Scan /// PAUT - Phased Array Ultrasonic Testing of the Carbon Fiber (CFRP) Composite Panels
-   ISONIC PA 0-deg B-Scan /// PAUT - Phased Array Ultrasonic Testing of the Glass Fiber (GFRP) Composite Panels
-   ISONIC PA 0-deg B-Scan /// PAUT - Phased Array Ultrasonic Testing of the Honeycomb Panels
-   ISONIC EXPERT SHAFT /// PAUT - Phased Array Ultrasonic Testing of the Shafts, Bolts, Spindles, and the like for the Transversal Cracks and Other Defects
-   ISONIC RW Axle Test /// PAUT - Phased Array Ultrasonic Testing of the Railway Axle Wheelset Shafts for the Transversal Cracks and Other Defects
-   ISONIC BRIDGE PIN TEST /// PAUT - Phased Array Ultrasonic Testing of the Bridge Hanger Pins for the Transversal Cracks and Other Defects
-   ISONIC DRILL ROD /// PAUT - Phased Array Ultrasonic Testing of the Drill Rods for the Transversal Cracks and Other Surface Defects
-   ISONIC RODScan /// PAUT - Phased Array Ultrasonic Testing of the Solid and Hollow Shafts, Rods, Axles, Thick Wall Tubes, Fitting Lugs, etc for the Longitudinal Cracks and Other Defects

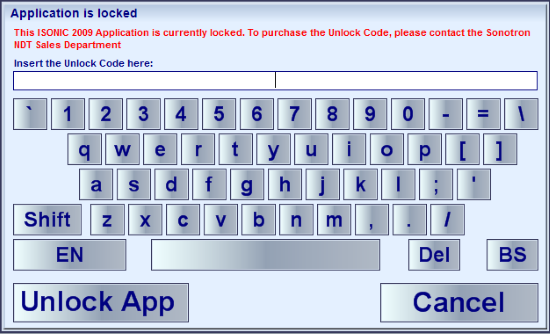

Note: Optional SW application may be unlocked in the factory at the time of sale or by the user at any moment after. On obtaining the unlock code click on the application icon then key in the code recieved from your sales contact and click on Unlock App:
