PA UT (PAUT): Lap Welds

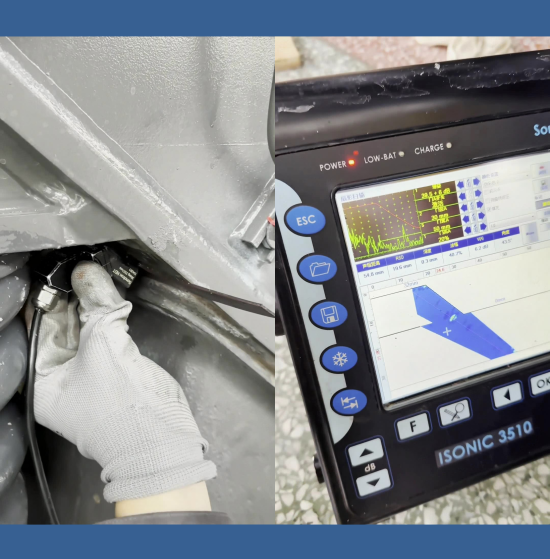

ISONIC Expert Lap Joint software application was created for the inspection of lap welds, pipe repairs sleeve welds, etc with use of wedged linear array probes situated on the parent material surface


PDF Brochure

This inspection software option is available for the ISONIC 3510, ISONIC 2010, and ISONIC 2009 UPA Scope instruments and featured with:
  • Built-In Weld Geometry Editor and Ray Tracer - Scanning Pattern (Scan Plan) Design
  • Intuitive Image Guided PA Pulser Receiver with Beam Forming View
  • True-To-Geometry Cross-Sectional Coverage and line scanning along the fusion line either encoded or time based
  • "On-the-fly" True-To-Geometry Weld Overlay Volume Corrected Imaging:
    • Cross Sectional Slices
    • Top (C-Scan) View
    • Side View
    • End View
    • 3D View
  • DAC / TCG Data / Image Normalization
  • Independent on TCG Angle Gain Compensation / Gain Per Focal Law Correction
  • Automatic Coupling Monitor
  • 100% Raw Data Capturing
  • Automatic Defects Alarming Upon C-Scan Acquisition Completed
  • Automatic Creation of Editable Defects List
  • Comprehensive Postrpocessing Toolkit Including:
    • Recovery and Evaluation of the Captured A-Scans from the Recorded Cross Sectional Views and C-Scans
    • Recovery of the Cross Sectional Views from the Recorded C-Scans
    • Converting Recorded C-Scans or their Segments into 3D Images
    • Off-Line Gain Manipulation
    • Off-Line DAC Normalization of the Recorded Images / DAC Evaluation
    • Numerous Filtering / Reject Options ( by Geometry / Position / By Amplitude db-to-DAC / etc ) and Regeneration of the Corresponding of Editable Defects List and Storing it into a Separate File
    • Defects Sizing
    • Automatic creating of inspection reports - hard copy / PDF File

The video below illustrates the ability of ISONIC series PA instruments to generate TFM images for the defects in the lap joints; the said ability is provided thanks to the 100% raw data capturing when the primary A-Scans for each element of the receiving aperture have been stored for each implemented focal law:



Note: In order to accelerate the data stream the video above is linked to the Youtube. In case the YouTube may not be accessed from your location please use the links below



DOWNLOAD AND PLAYBACK THE EXEMPLARY INSTRUMENTS FILES

The archive comprises some Exemplary Instrument Files for this application

The files should be extracted from the archive and played in the regular PC running under Win'XP, 7, 8, 10 with use of the freely distributable ISONIC PA Office software package
