ISONIC 2007 uniquely combines functionality and mobility of high performance portable digital single or dual channel ultrasonic flaw detector with recording, imaging,
and data processing capabilities of smart computerized dual channel inspection system ISONIC 2007 resolves a variety of ultrasonic inspection tasks:
A-Scan-based inspection using conventional pulse echo, back echo attenuation, and through transmission techniques
Single Channel Straight Line Scanning and Recording:
Thickness Profile B-Scan imaging and recording is performed through continuous capturing of wall thickness readings along probe trace
B-Scan cross-sectional imaging and recording of defects for longitudinal and shear wave inspection is performed through continuous measuring of echo amplitudes and reflectors coordinates along probe trace
CB-Scan horizontal plane-view imaging and recording of defects for shear, surface, and guided wave inspection is performed through continuous measuring of echo amplitudes and reflectors coordinates along probe trace
TOFD Inspection – RF B-Scan and D-Scan Imaging
For Single Channel Straight Line Scanning and Recording it may be used:
Dual Channel Straight Line Scanning and Recording:
Thickness Profile B-Scan imaging and recording is performed through continuous capturing of wall thickness readings along probe trace
CB-Scan horizontal plane-view imaging and recording of defects for shear, surface, and guided wave inspection is performed through continuous measuring of echo amplitudes and reflectors coordinates along probe trace

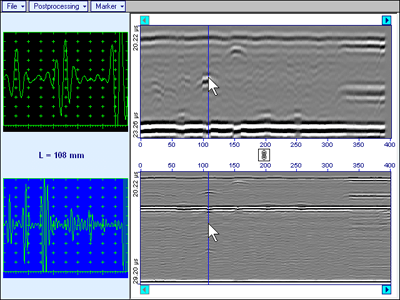

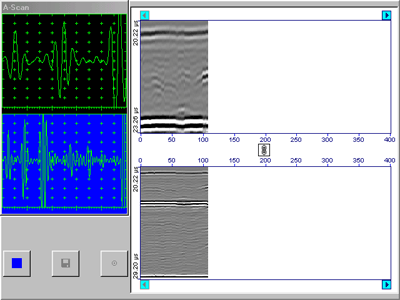

TOFD Inspection – RF B-Scan and D-Scan Imaging
For Dual Channel Straight Line Scanning and Recording it may be used:
XY-Scanning and Recording with C-Scan and B-Scan imaging is also possible if using optional USB interface to multi-axis mechanical encoder and appropriate software package
For all types of Straight Line Scanning and XY-Scanning records A-Scans are captured for each probe position along probe trace and may be played back and evaluated off-line at postprocessing stage. This unique feature makes it possible off-line defect characterization through echo-dynamic pattern analysis
Thickness Profile B-Scan Data recorded during Straight Line Scanning is presented in the format compatible with various Risk Based Inspection and Maintenance procedures
ISONIC 2007 has practically unlimited capacity for storing of:
Single A-Scans accompanied with corresponding instrument settings
Ultrasonic signal spectrum graphs (FFT) accompanied with corresponding RF A-Scans and instrument settings
Various A-Scans sequence records along with corresponding Thickness Profiles, B-Scans, CB-Scans or TOFD Maps depending on mode of operation selected; each record is accompanied with corresponding instrument settings
ISONIC 2007 complies with requirements of National and International Codes:
ASME Section I – Rules for Construction of Power Boilers
ASME Section VIII, Division 1 – Rules for Construction of Pressure Vessels
ASME Section VIII, Division 2 – Rules for Construction of Pressure Vessels. Alternative Rules
ASME Section VIII Article KE-3 – Examination of Welds and Acceptance Criteria
ASME Code Case 2235 Rev 9 – Use of Ultrasonic Examination in Lieu of Radiography
Non-Destructive Examination of Welded Joints – Ultrasonic Examination of Welded Joints. – British and European Standard BS EN 1714:1998
Non-Destructive Examination of Welds – Ultrasonic Examination – Characterization of Indications in Welds. – British and European Standard BS EN 1713:1998
Calibration and Setting-Up of the Ultrasonic Time of Flight Diffraction (TOFD) Technique for the Detection, Location and Sizing of Flaws. – British Standard BS 7706:1993
WI 00121377, Welding – Use Of Time-Of-Flight Diffraction Technique (TOFD) For Testing Of Welds. – European Committee for Standardization – Document # CEN/TC 121/SC 5/WG 2 N 146, issued Feb, 12, 2003
ASTM E 2373 – 04 – Standard Practice for Use of the Ultrasonic Time of Flight Diffraction (TOFD) Technique
Non-destructive testing of welds - Ultrasonic testing - Use of time-of-flight diffraction technique (TOFD). - International Standard EN ISO 10863:2011
Non-Destructive Testing – Ultrasonic Examination – Part 5: Characterization and Sizing of Discontinuities. – British and European Standard BS EN 583-5:2001
Non-Destructive Testing – Ultrasonic Examination – Part 2: Sensitivity and Range Setting. – British and European Standard BS EN 583-2:2001
AD 2000-Merkblatt HP 5/3 Anlage 1:2015-04: Zerstörungsfreie Prüfung der Schweißverbindungen - Verfahrenstechnische Mindestanforderungen für die zerstörungsfreien Prüfverfahren - Non-destructive
testing of welded joints – Minimum technical procedure requirements for non-destructive testing methods (Germany)
The zero point test and annual verification procedures of ISONIC 2007 are fully compliant with the international standards below and the corresponding national norms
EN 12668-1 / ISO 22232-1. Non-destructive testing – Characterization and verification of ultrasonic examination equipment. Part 1: Instruments
EN 12668-3 / ISO 22232-3. Non-destructive testing – Characterization and verification of ultrasonic examination equipment. Part 3: Combined Equipment
Spike pulse - smoothly tunable (18 levels) 50V … 400 V into 50 Ω at 4 levels of excitation energy
Square wave pulse - smoothly tunable (18 levels) 50V … 400 V into 50 Ω
Pulse Duration*:
Spike pulse - 10…70 ns for 50 Ω load depending on Energy and Damping setup
Square wave pulse - 65…600 ns controllable in 5 ns step with driving of both leading edge and trailing edge of the pulse
Energy (Spike Pulse)*:
4 discrete energy values / 40 μJ (min) to 250 μJ (max) – at 400V amplitude
Modes*:
Single / Dual
Damping*:
17 discrete resistances values / 25Ω min to 1000 Ω max
0...99 % of screen height controllable in 1% resolution
DAC / TCG*:
Theoretical – through keying in dB/mm (dB/") factor
Experimental – through sequential recording echo amplitudes from variously located equal reflectors
46 dB Dynamic Range, Slope ≤ 20 dB/μs, Capacity ≤40 points
Available for Rectified and RF Display
DGS*:
Standard Library for 18 probes / unlimitedly expandable
Gates*:
2 Independent Gates / unlimitedly expandable
Gate Start and Width*:
Controllable over whole variety of A-Scan Display Delay and A-Scan Range settings
in 0.1 mm /// 0.001" resolution
Gate Threshold*:
5…95 % of A-Scan height controllable in 1 % resolution
Measuring Functions – Digital
Display Readout*:
27 automatic functions / expandable; Dual Ultrasound Velocity Measurement Mode for
Multi-Layer Structures; Curved Surface / Thickness / Skip correction for angle beam probes; Ultrasound velocity and Probe Delay Auto-Calibration for all types of probes
Freeze (A-Scans and Spectrum Graphs)*
Freeze All
Freeze Peak
All signal and spectrum evaluation functions, managing gates and Gain settings are allowed for frozen signals
Encoder Interface:
Built-in interface for incremental mechanical encoder
Time-based or True-to-location (incremental encoder)
Length of one record:
50…20000 mm (2"…800"), automatic scrolling
Method of Record**:
Complete raw data recording
Region of Interest**:
Controllable over entire Display Delay, Probe Delay, Range, US Velocity and other appropriate
instrument settings
Off-Line Image Analysis**:
Recovery and play back of A-Scan captured during scanning
Echo-dynamic pattern analysis · Defects sizing and outlining
Statistical analysis of Thickness / Amplitude data
Converting Record into ASCII/MS Excel®/MS WordÒ formats
Data Reporting**:
Direct printout of Calibration Dumps, A-Scans, Spectrum Graphs, thickness profile B-Scans,
cross-sectional B-Scans, plane view CB-Scans, TOFD maps
Data Storage Capacity:
At least 100000 sets including calibration dumps accompanied with A-Scans and/or Spectrum
Graphs; At least 10000 sets including calibration dumps accompanied with thickness profile
B-Scans or cross-sectional B-Scans or plane view CB-Scans or TOFD maps
On-Board Computer
AMD LX 800 - 500MHz
RAM:
512 Megabytes
Flash Memory - Quasi HDD
4 Gigabytes
Outputs:
LAN, USB X 2, PS 2, SVGA
Screen:
6.5" High Color Resolution (32 bit) SVGA 640×480 pixels 133×98 mm (5.24" ×3.86") Sun-readable
LCD; Maximal A-Scan Size (working area) – 130×92 mm (5.12" × 3.62")
Controls:
Front Panel Sealed Keyboard, Front Panel Sealed Mouse, Touch Screen
Compatibility with the external devices:
PS 2 Keyboard and Mouse, USB Keyboard and Mouse, USB Flash Memory card, Printer
through USB or LAN, PC through USB or LAN, SVGA External Monitor
Operating System:
Windows™ XP Embedded
Power:
Mains - 100…240 VAC, 40…70 Hz, auto-switch; Battery 12V 8AH up to 6 hours continuous operation
Housing:
IP 53 rugged aluminum case with carrying handle
Dimensions:
265×156×101 mm (10.43"×6.14"×3.98") - without battery
265×156×139 mm (10.43"×6.14"×5.47") - with battery
Weight:
2.650 kg (5.83 lbs) - without battery
3.580 kg (7.88 lbs) - with battery
* for both channels
** for single and dual channel operation

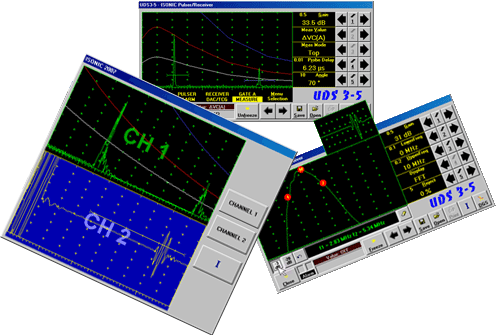

Conventional pulse echo and through transmission A-Scan-based inspection
640X480 pixels A-Scan display of the working area with physical dimensions 130 x 90 mm (5.12" x 3.62") is among the largest for the plurality of portable ultrasonic flaw detectors
Combined adjustable spike / square wave pulser equipped with the variety of probe impedance matching coils allows providing of the best ultrasonic wave penetration for various materials
characterized either by high or low grain size, sound attenuation, and the like
High frequency probe will not be destroyed occasionally upon connecting to instrument's firing output even if the duration of square wave initial pulse is improperly long thanks to the probe damage prevention circuit
automatically limiting the energy transmitted to the probe's crystal
46 dB dynamic range 20 dB/µs maximum slope multiple curve DAC/TCG may be created using up to 40 data points to correct the distance – amplitude variations of ultrasonic signals
The theoretical or experimental DAC may be created through keying in the dB/mm (dB/") factor or one-by-one recording of the echo amplitudes from the variously located reflectors
DAC/TCG may be applied to the rectified A-Scans (positive, negative, and full wave) and to the RF A-Scans as well
The built-in DGS database for the standard probes is unlimitedly expandable
Thanks to the extended dynamic range the signals significantly exceeding the A-Scan height (up to 199.9%) may be evaluated without Gain drop
Manipulating of the Gain and Gates settings is possible for the frozen A-Scans providing bringing of the stored signals to the level most convenient for the off-line evaluation
The Dual Ultrasound Velocity Measurement Mode extremely simplifies resolving of the sound path distances for the dissimilar materials adjacent to each other whereas the different values of ultrasound velocity are
valid for the variety of the signals appearing on the same A-Scan
The RF display mode combined with the frequency domain signal analysis (FFT) enhances the instrument’s capabilities for the ultrasonic spectroscopy with the purpose of materials characterization,
bond inspection, testing of dissimilar materials, defect pattern analysis, probes evaluation, etc
Optional data logger organizes and manages database files capable to store up to 254745 thickness readings each and organized as 2D matrix. In
the database every thickness reading is accompanied with the corresponding raw data A-Scan and instrument setup. Automatic creating of MS Excel® thickness spreadsheet meets the
requirements of various Risk Based Inspection and Maintenance (RBIM) procedures
In the ISONIC 2007 all single channel line scanning inspections are performed in the manner identical to ISONIC 2005
The Single Channel Thickness Profile imaging and recording is performed through the continuous capturing of the thickness readings along the probe trace:
Both time-based (real time clock) and true-to-location (built-in incremental encoder interface) modes of data recording are supported
The complete sequence of A-Scans is recorded along with the thickness profile
The off-line evaluation of the thickness profile record is featured with:
Sizing of the thickness damages: the remaining thickness, the thickness loss, and the length of the damage
Play-back and evaluation of the A-Scans captured during the scanning
Off-line reconstruction of the thickness profile image for various Gain and/or Gate settings
Automatic conversion of the thickness profile B-Scan data into MS Excel® spreadsheet meeting the requirements of various Risk Based Inspection and Maintenance (RBIM) procedures
Typical Application: Corrosion characterization
Movie for the Thickness Profile imaging principle:
Typical Thickness B-Scan screen:
Thickness profiling with use of the automatic scanner:
Note: In order to accelerate the data stream the videos above are linked to the Youtube. In case the YouTube may not be accessed from your location please use the links below
The Dual Channel Thickness Profile imaging and recording is performed through continuous capturing of the thickness readings along probe trace:
True-to-location data recording
The complete sequence of A-Scans is recorded along with the thickness profiles
The off-line evaluation of the dual thickness profile record is featured with:
Sizing of the thickness damages: remaining thickness, thickness loss, location and length
Play-back and evaluation of the A-Scans captured during the scanning
Off-line reconstruction of the dual thickness profile image for the various Gain and/or Gate settings
Automatic conversion of the thickness profile B-Scan data into MS Excel® thickness spreadsheet meeting requirements of the various Risk Based Inspection and Maintenance (RBIM) procedures
Typical Application: Corrosion characterization

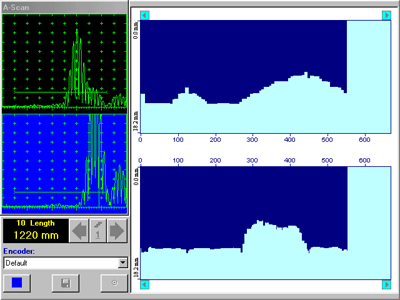

On-Line Instrument Screenshot

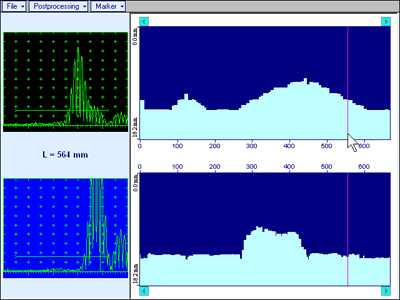

Off-Line Instrument Screenshot
In the ISONIC 2007 all single channel line scanning inspections are performed in the manner identical to ISONIC 2005
The B-Scan cross-sectional imaging and recording of defects for longitudinal and shear wave inspection is performed through the continuous measuring of the echo amplitudes and reflectors coordinates along the probe trace:
Both time-based (real time clock) and true-to-location (built-in incremental encoder interface) modes of data recording are supported
The complete sequence of A-Scans is recorded along with the B-Scan image
Off-line evaluation of the B-Scan record is featured with:
Sizing of the defects: the coordinates and projection dimensions
Play-back and evaluation of the A-Scans captured during the scanning
Defects outlining and the echo-dynamic pattern analysis
Reconstruction of the B-Scan image for the various Gain and/or Reject settings
DAC / DGS B-Scan image normalization
Typical Applications: Pulse echo inspection of welds, composites, metals, plastics, and the like
Movie for the B-Scan cross-sectional imaging principle:
Typical B-Scan screens for the 0-deg and angle beam inspection:
Note: In order to accelerate the data stream the video above is linked to the Youtube. In case the YouTube may not be accessed from your location please use the link below
In the ISONIC 2007 all single channel line scanning inspections are performed in the manner identical to ISONIC 2005
The CB-Scan horizontal plane-view imaging and recording of the defects for shear, surface, and guided wave inspection is performed through the continuous measuring of the echo amplitudes and reflectors coordinates along the probe trace:
Both time-based (real time clock) and true-to-location (built-in incremental encoder interface) modes of data recording are supported
The complete sequence of A-Scans is recorded along with the CB-Scan image
Off-line evaluation of the CB-Scan record is featured with:
Sizing of the defects: the coordinates and projection dimensions
Play-back and evaluation of the A-Scans captured during the scanning
Defects outlining and the echo-dynamic pattern analysis
Reconstruction of CB-Scan image for the various Gain and/or Reject settings
DAC/DGS CB-Scan image normalization
Typical Applications: SRUT guided wave and CHIME inspection of the annular rings, plates, pipewalls, shells, and the like for the pitting, stress corrosion, etc; weld inspection, surface wave inspection
Movie for the CB-Scan horizontal plane-view imaging principle:

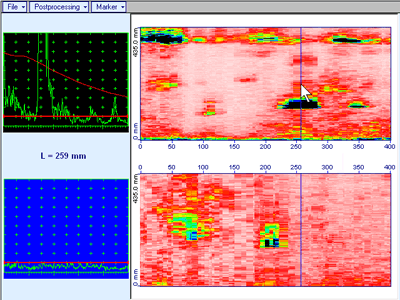

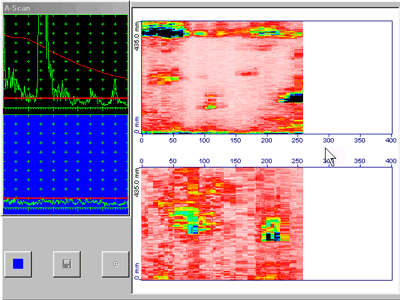

Typical CB-Scan screen for the SRUT guided wave inspection of the annular ring:
In the field:
Detecting Defects through the High Alloy Cladding with Irregular Surface using SRUT Probe:
CB-Scan Record for the Shear Wave Inspection of Welds in the Thin Wall Tubes with the use of
Dual Element Probes with Flexible Contact Face:
Note: In order to accelerate the data stream the videos above are linked to the Youtube. In case the YouTube may not be accessed from your location please use the links below
The Dual Channel CB-Scan horizontal plane-view imaging and recording of the defects for the shear, surface, and guided wave inspection performed through the continuous measuring of the echo amplitudes and reflectors
coordinates along probe trace:
True-to-location data recording
The complete sequence of A-Scans is recorded along with CB-Scan defects images for both channels
The off-line evaluation of the dual channel CB-Scan record is featured with:
Sizing of the defects: coordinates and projection dimensions
Play-back and evaluation of the A-Scans captured during the scanning
Defects outlining and echo-dynamic pattern analysis
Reconstruction of the CB-Scan defects images for the various Gain and/or Reject settings
DAC/DGS CB-Scan normalization
Typical Applications: High speed long range pulse echo and CHIME inspection of pipes with partially removed insulation, tank shells, palates for pitting, stress corrosion, etc; weld inspection, surface wave inspection
The video below illustrates TOFD A-Scan for the sharp edged planar vertical and compact discontinuities:
Movie for the TOFD Recording and Imaging principle (the video was captured on the specimen made of HDPE):
Typical TOFD record for the weld inspection:
In the field:
Note: In order to accelerate the data stream the videos above are linked to the Youtube. In case the YouTube may not be accessed from your location please use the links below
Dual Channel TOFD Inspection – RF B-Scan
True-to-location data recording
Averaging of the A-Scans whilst recording (if desired by an operator)
The complete sequence of RF A-Scans is recorded along with the dual channel TOFD map
The off-line evaluation of TOFD Map is featured with::
Improvement of near to surface resolution through removal of lateral wave and/or back echo record
Linearization and straightening
Play-back and evaluation of A-Scans obtained during scanning
Improvement of the near to surface resolution through removal of lateral wave and/or back echo signals sequences from the record
Defects pattern analysis and sizing
Zoom of the TOFD Map and A-Scans
Typical Application: the automatic, semi-automatic, manual weld inspection
On-Line Instrument Screenshot
Off-Line Instrument Screenshot
The videos below illustrate several examples of perfroming the Dual Channel TOFD inspection of welds:
Note: In order to accelerate the data stream the videos above are linked to the Youtube. In case the YouTube may not be accessed from your location please use the links below
UT over IP - Remote Control and Data Acquisition
Thanks to the Client – Server software architecture ISONIC 2007 may be controlled remotely from a regular PC running under Win’XP, 7, 8, 10. There is no need in the special software for that purpose, just download and install in the PC the same software as used in the instrument
The software installed in the PC should be of the same release as the software running in the ISONIC 2007 and correspond to the instrument model
Installing the Instrument Software in the PC

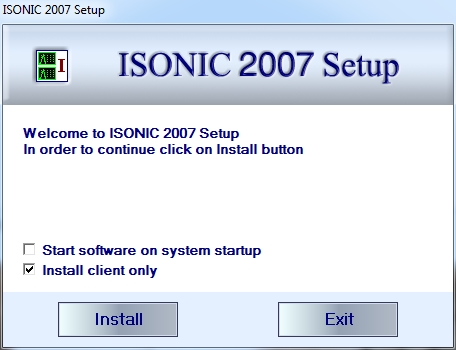

Upon started the installation routine generates the dialogue as below on the PC screen:
It is necessary to check Install client only and uncheck Run on windows startup option then to click on Install button. Further actions are taken by the installation routine automatically
Controlling the Instrument from the PC
The instrument and the computer should be connected to the same LAN or Wi-Fi and obtain the IPs automatically. The initial Startup menu (Start Screen) appearing upon powering the instrument on and booting up completed
should be kept on the unit's screen at the time of establishing the remote connection and control. In the computer the same software should be launched: on appearing of the Startup menu it is necessary to select the instrument
to be controlled from the list of the available Idle units:
Once the connection is established ISONIC 2007 unit enters into the slave mode being connected to the probes and encoder and running the just the server routine while the computer performs full control of the instrument,
data acquisition, processing, and storage on the local drives through running of the client software in the same manner as the instrument does when operating autonomously
