Since December 1, 2019 ISONIC 2008 is phased out; the full support of the existing instruments is continued.
ISONIC 2008 is successed by the ISONIC3208
ISONIC 2008 uniquely combines the functionality and mobility of the high performance portable digital ultrasonic flaw detector with recording, imaging,
and data processing capabilities of the smart computerized multi-channel inspection system
ISONIC 2008 resolves the wide variety of ultrasonic inspection tasks:
Single- and Multichannel A-Scan-based inspections using the conventional pulse echo, back echo attenuation, and through transmission techniques
Single Channel Straight Line Scanning and Recording:
Thickness Profile B-Scan Imaging and Recording
Flaw Detection B-Scan cross-sectional Imaging and Recording for the Longitudinal and Shear Wave Inspections
Flaw Detection / Corrosion Screening CB-Scan Horizontal Plane-View Imaging and Recording for the Shear, Surface, and Guided Wave Inspections
TOFD / CHIME Inspection – RF B-Scan and D-Scan Imaging
Multi-Channel Straight Line Scanning and Strip Chart Recording:
Multi-Channel Thickness Profile B-Scan Imaging and Recording
Multi-Channel Combined TOFD and Pulse Echo Weld Inspection and Recording
Multi-Channel Pulse Echo Flaw Detection for the Shear, Surface, and Guided Wave Inspections
etc
XY-Scanning and Recording with C-Scan and B-Scan Imaging
For all types of the Line Scanning and XY-Scanning coverage the A-Scans are recorded at each probe position and may be played back and evaluated
at the postprocessing stage.This allows performing of the defects characterization through the echo-dynamic pattern analysis off-line
The Thickness Profile B-Scan is convertible into the format compatible with the various Risk Based Inspection and Maintenance (RBIM) procedures
ISONIC 2008 has practically unlimited capacity for the storage of the:
Single A-Scans accompanied with the corresponding instrument settings
Ultrasonic signal spectrum graphs (FFT) accompanied with the corresponding RF A-Scans and the instrument settings
Various A-Scans sequence records along with the corresponding Thickness Profiles, B-Scans, CB-Scans, TOFD Maps, Strip Charts; each record is accompanied with the corresponding instrument settings
ISONIC 2008 complies with requirements of National and International Codes:
ASME Section I – Rules for Construction of Power Boilers
ASME Section VIII, Division 1 – Rules for Construction of Pressure Vessels
ASME Section VIII, Division 2 – Rules for Construction of Pressure Vessels. Alternative Rules
ASME Section VIII Article KE-3 – Examination of Welds and Acceptance Criteria
ASME Code Case 2235 Rev 9 – Use of Ultrasonic Examination in Lieu of Radiography
Non-Destructive Examination of Welded Joints – Ultrasonic Examination of Welded Joints. – British and European Standard BS EN 1714:1998
Non-Destructive Examination of Welds – Ultrasonic Examination – Characterization of Indications in Welds. – British and European Standard BS EN 1713:1998
Calibration and Setting-Up of the Ultrasonic Time of Flight Diffraction (TOFD) Technique for the Detection, Location and Sizing of Flaws. – British Standard BS 7706:1993
WI 00121377, Welding – Use Of Time-Of-Flight Diffraction Technique (TOFD) For Testing Of Welds. – European Committee for Standardization – Document # CEN/TC 121/SC 5/WG 2 N 146, issued Feb, 12, 2003
ASTM E 2373 – 04 – Standard Practice for Use of the Ultrasonic Time of Flight Diffraction (TOFD) Technique
Non-destructive testing of welds - Ultrasonic testing - Use of time-of-flight diffraction technique (TOFD). - International Standard EN ISO 10863:2011
Non-Destructive Testing – Ultrasonic Examination – Part 5: Characterization and Sizing of Discontinuities. – British and European Standard BS EN 583-5:2001
Non-Destructive Testing – Ultrasonic Examination – Part 2: Sensitivity and Range Setting. – British and European Standard BS EN 583-2:2001
AD 2000-Merkblatt HP 5/3 Anlage 1:2015-04: Zerstörungsfreie Prüfung der Schweißverbindungen - Verfahrenstechnische Mindestanforderungen für die zerstörungsfreien Prüfverfahren - Non-destructive
testing of welded joints – Minimum technical procedure requirements for non-destructive testing methods (Germany)
The zero point test and annual verification procedures of ISONIC 2008 are fully compliant with the international standards below and the corresponding national norms
EN 12668-1 / ISO 22232-1. Non-destructive testing – Characterization and verification of ultrasonic examination equipment. Part 1: Instruments
EN 12668-3 / ISO 22232-3. Non-destructive testing – Characterization and verification of ultrasonic examination equipment. Part 3: Combined Equipment
Built-in means for the comprehensive postprocessing in the instrument
ISONIC Office L - freely distributable postprocessing package for the computer running under W'XP, W'7, W'8, W'10
On-Board Computer CPU:
Dual Core Intel Atom N2600 CPU 1.6 GHz / units manufactured after 2017-10-31
AMD LX 800 - 500MHz / units manufactured on or before 2017-10-31
RAM:
2 GB / units manufactured after 2017-10-31
1 GB / units manufactured on or before 2017-10-31
Quasi HDD:
SSD Card 64 GB / units manufactured after 2017-10-31
CF Card 4 GB / units manufactured on or before 2017-10-31
Screen:
Sun readable 6.5” touch screen 640 x 480
Controls:
Touch screen
Front Panel Sealed Keyboard and Mouse
Standard Ports:
2 x USB (optionally expandable up to 8)
Ethernet
sVGA
Wi Fi (optional – through optional external USB dongle)
3,4,5G (optional – through optional external USB dongle)
Operating System:
W'7PROEmb / units manufactured after 2017-10-31
W'XPEmb / units manufactured on or before 2017-10-31

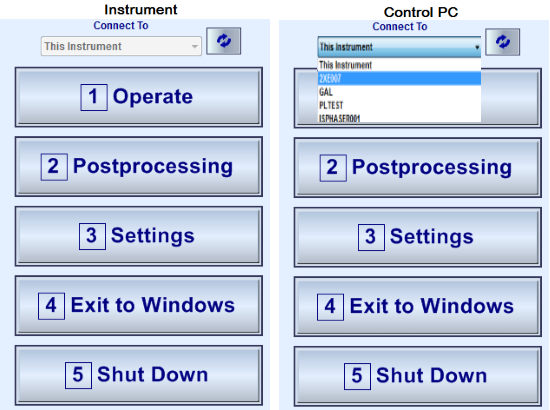

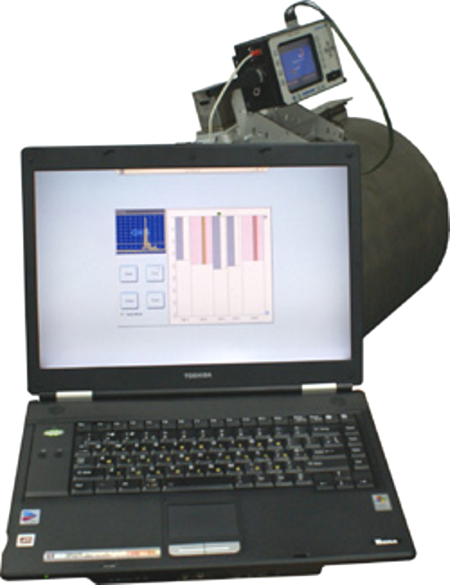

Remote Control:
From an external computer running under W'XP, W'7, W'8, W'10 through Ethernet or Wi Fi
From 3,4,5G Cell Phone
No special software required
All calibration and inspection data is stored in the control computer
Ambient Temperature:
-30°C ... +60°C (operation)
-50°C ... +60°C (storage)
Housing:
Rugged aluminum case with carrying handle
IP 65
No air intake
The cooling is not required
Dimensions:
265x156x101 mm (10.43"x6.14"x3.98") - without battery
265x156x130 mm (10.43"x6.14"x5.12") - with battery / units manufactured after 2017-10-31
265x156x139 mm (10.43"x6.14"x5.47") - with battery / units manufactured on or before 2017-10-31
Weight:
2.500 kg (5.50 lbs) – without battery 3.430 kg (7.55 lbs) – with battery
Conventional single channel pulse echo and through transmission A-Scan-based inspection
640X480 pixels A-Scan display with the physical dimensions of working area 130 x 90 mm (5.12" x 3.62") is the largest one for the
plurality of portable ultrasonic flaw detectors
The bi-polar square wave pulser with the tunable pulse duration and amplitude provides the optimal probe driving enhancing ultrasound penetration for the
various materials characterized either by high or low grain, sound attenuation, and the like
The high frequency probe may not be destroyed occasionally upon connecting to the instrument's firing output even for the improperly settled duration and / or
amplitude of the wave initial pulse thanks to the probe damage prevention circuit automatically limiting the energy transmitted to the probe's crystal
32-Taps FIR band pass digital filter with the controllable lower and upper frequency limits optimizes the signal to noise ratio for various probes, materials, and inspection tasks

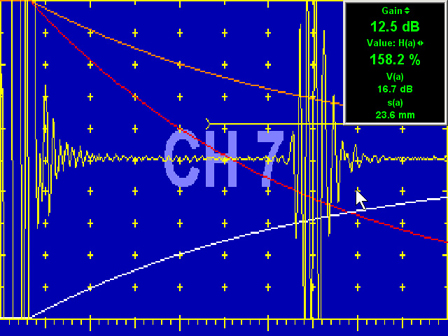

46 dB dynamic range 20 dB/µs maximum slope multiple curve DAC/TCG may be created using up to 40 data points
Both the theoretical and experimental DAC may be activated either through keying in the dB/mm (dB/") factor or through recording of the
echo amplitudes from the variously located equal reflectors
DAC/TCG may be applied to the rectified A-Scans (positive, negative, and full wave) and to RF A-Scans as well
The built-in DGS database for the standard probes is unlimitedly expandable
Thanks to the extended dynamic range the signals significantly exceeding the A-Scan height (up to 199.9%) may be evaluated without dropping the Gain
Whilst the A-Scan is frozen managing of the Gain and Gates settings is still allowed and provides bringing the desired signals to the
necessary evaluation level required for the evaluation

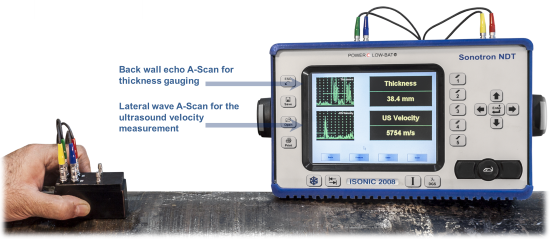

The Dual Ultrasound Velocity Measurement Mode extremely simplifies resolving of the sound path distances for dissimilar materials adjacent to each other;
the various ultrasound velocity settings may be applied to the corresponding signals appearing on the same A-Scan
The RF display mode combined with the frequency domain signal analysis (FFT) enhances the instrument’s capabilities for the ultrasonic spectroscopy with the purpose of materials characterization,
bond inspection, testing of dissimilar materials, defect pattern analysis, probes evaluation, etc
Optional data logger organizes and manages database files capable to store up to 254745 thickness readings each and organized as 2D matrix. In
the database every thickness reading is accompanied with the corresponding raw data A-Scan and instrument setup. Automatic creating of MS Excel® thickness spreadsheet meets the
requirements of various Risk Based Inspection and Maintenance (RBIM) procedures
The video below illustrates checking DAC calibration of one channel of ISONIC 2008 for the wide Dual Element Probe for the plates inspection covering the thickness range 6....300 mm
Note: In order to accelerate the data stream the video above is linked to the Youtube. In case the YouTube may not be accessed from your location please use the link below
Single Channel - Line Scanning
In the ISONIC 2008 all single channel line scanning inspections are performed in the manner identical to ISONIC 2005
The Thickness Profile imaging and recording is performed through the continuous capturing of the thickness readings along the probe trace:
Both time-based (real time clock) and true-to-location (built-in incremental encoder interface) modes of data recording are supported
The complete sequence of A-Scans is recorded along with the thickness profile
The off-line evaluation of the thickness profile record is featured with:
Sizing of the thickness damages: the remaining thickness, the thickness loss, and the length of the damage
Play-back and evaluation of the A-Scans captured during the scanning
Off-line reconstruction of the thickness profile image for various Gain and/or Gate settings

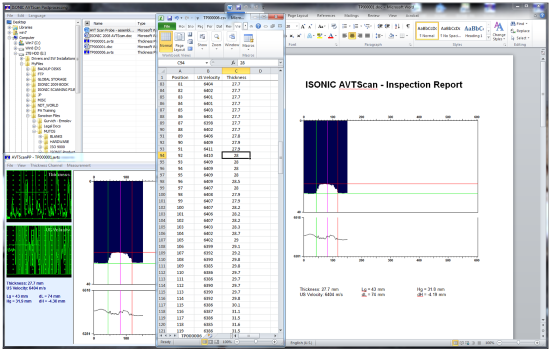

Automatic conversion of the thickness profile B-Scan data into MS Excel® spreadsheet meeting the requirements of various Risk Based Inspection and Maintenance (RBIM) procedures
Typical Application: Corrosion characterization
Movie for the Thickness Profile imaging principle:

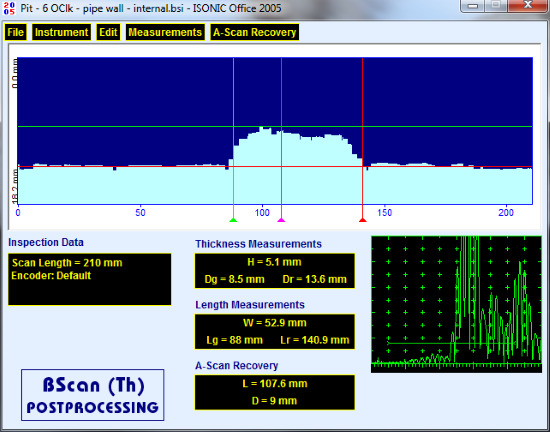

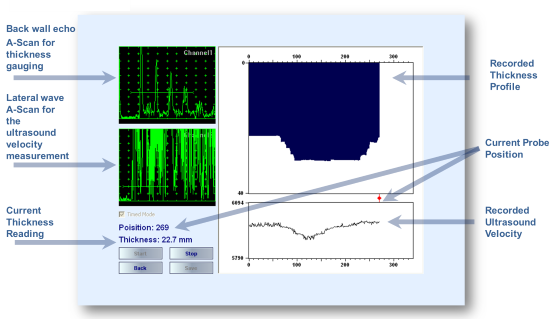

Typical Thickness B-Scan screen:

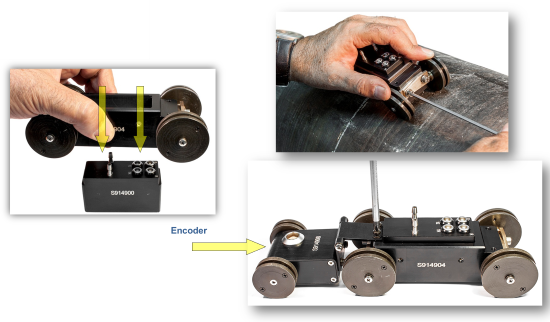

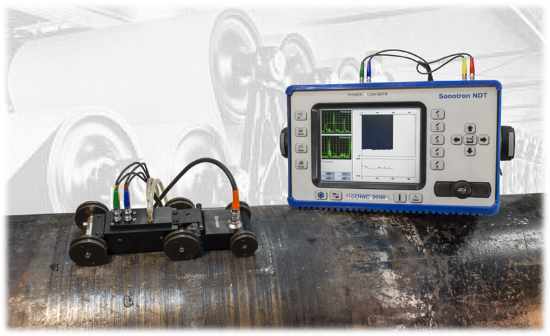

Thickness profiling with use of the automatic scanner:
Note: In order to accelerate the data stream the videos above are linked to the Youtube. In case the YouTube may not be accessed from your location please use the links below
The B-Scan cross-sectional imaging and recording of defects for longitudinal and shear wave inspection is performed through the continuous measuring of the echo amplitudes and reflectors coordinates along the probe trace:
Both time-based (real time clock) and true-to-location (built-in incremental encoder interface) modes of data recording are supported
The complete sequence of A-Scans is recorded along with the B-Scan image
Off-line evaluation of the B-Scan record is featured with:
Sizing of the defects: the coordinates and projection dimensions
Play-back and evaluation of the A-Scans captured during the scanning
Defects outlining and the echo-dynamic pattern analysis
Reconstruction of the B-Scan image for the various Gain and/or Reject settings
DAC / DGS B-Scan image normalization
Typical Applications: Pulse echo inspection of welds, composites, metals, plastics, and the like
Movie for the B-Scan cross-sectional imaging principle:

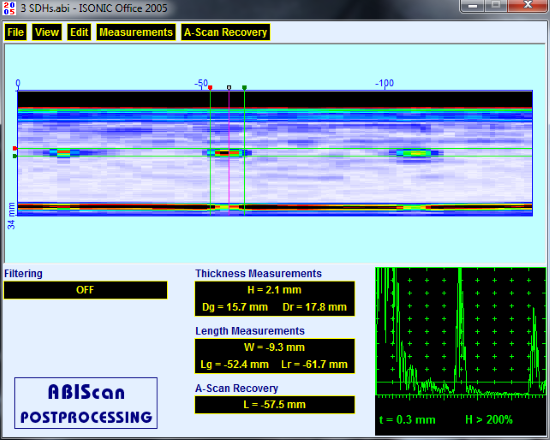

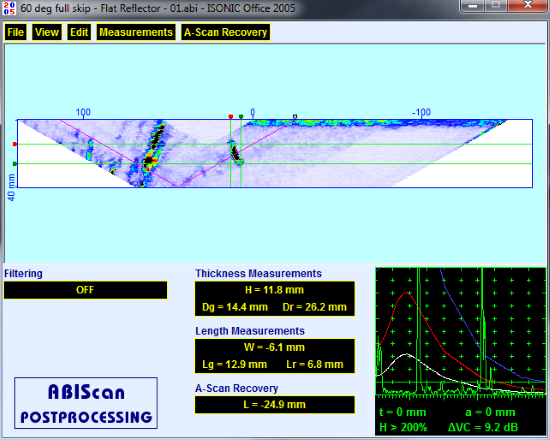

Typical B-Scan screens for the 0-deg and angle beam inspection:
Note: In order to accelerate the data stream the video above is linked to the Youtube. In case the YouTube may not be accessed from your location please use the link below
The CB-Scan horizontal plane-view imaging and recording of the defects for shear, surface, and guided wave inspection is performed through the continuous measuring of the echo amplitudes and reflectors coordinates along the probe trace:
Both time-based (real time clock) and true-to-location (built-in incremental encoder interface) modes of data recording are supported
The complete sequence of A-Scans is recorded along with the CB-Scan image
Off-line evaluation of the CB-Scan record is featured with:
Sizing of the defects: the coordinates and projection dimensions
Play-back and evaluation of the A-Scans captured during the scanning
Defects outlining and the echo-dynamic pattern analysis
Reconstruction of CB-Scan image for the various Gain and/or Reject settings
DAC/DGS CB-Scan image normalization
Typical Applications: SRUT guided wave and CHIME inspection of the annular rings, plates, pipewalls, shells, and the like for the pitting, stress corrosion, etc; weld inspection, surface wave inspection
Movie for the CB-Scan horizontal plane-view imaging principle:

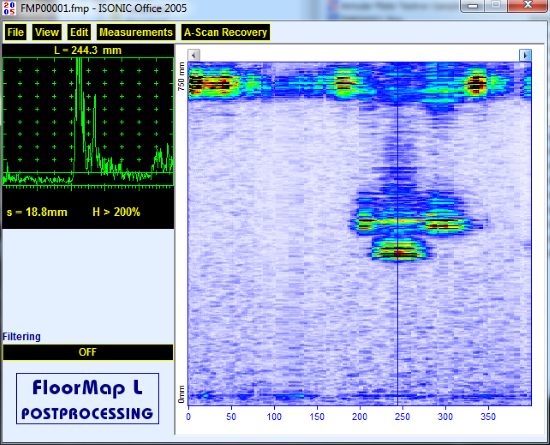

Typical CB-Scan screen for the SRUT guided wave inspection of the annular ring:
In the field:
Detecting Defects through the High Alloy Cladding with Irregular Surface using SRUT Probe:
CB-Scan Record for the Shear Wave Inspection of Welds in the Thin Wall Tubes with the use of
Dual Element Probes with Flexible Contact Face:
Note: In order to accelerate the data stream the videos above are linked to the Youtube. In case the YouTube may not be accessed from your location please use the links below
TOFD Inspection – RF B-Scan and D-Scan Imaging
Both time-based (real time clock) and true-to-location (built-in incremental encoder interface) modes of data recording are supported
Averaging A-Scans whilst recording as per operator's selection
The complete sequence of RF A-Scans is recorded along with the TOFD map

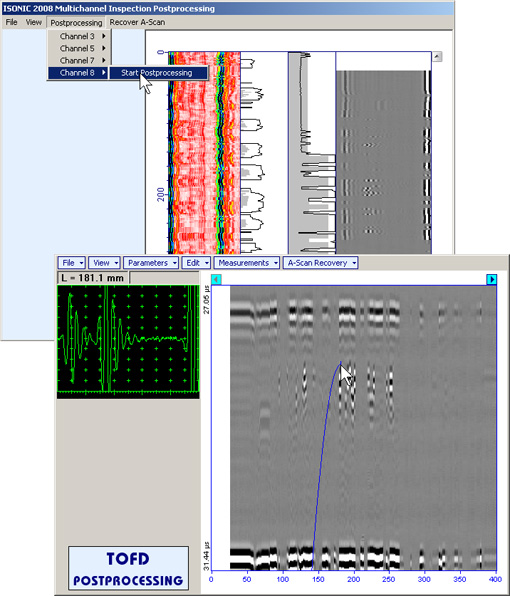

Off-line evaluation of the TOFD Map - the all-functional TOFD postrpocessing is featured with:
Improvement of the near surface resolution through the removal of lateral wave and/or back echo record
Linearization and straightening
Play-back and evaluation of the A-Scans obtained during the scanning
Manipulating the contrast of the TOFD image through varying Gain setting, ADC grades, and/or rectification
Defects pattern analysis and sizing:
Depth and Height
Position along the fusion line and Length: parabolic cursors and SAFT are applicable
The video below illustrates TOFD A-Scan for the sharp edged planar vertical and compact discontinuities:
Movie for the TOFD Recording and Imaging principle (the video was captured on the specimen made of HDPE):

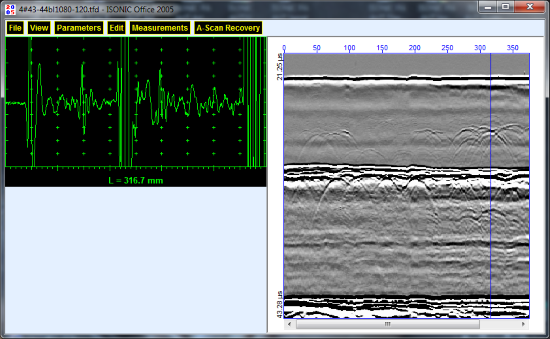

Typical TOFD record for the weld inspection:

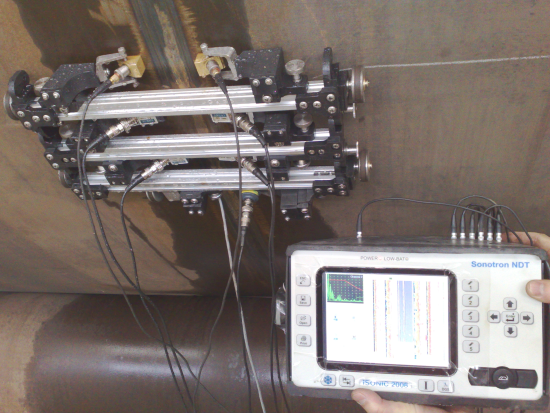

In the field:
Note: In order to accelerate the data stream the videos above are linked to the Youtube. In case the YouTube may not be accessed from your location please use the links below

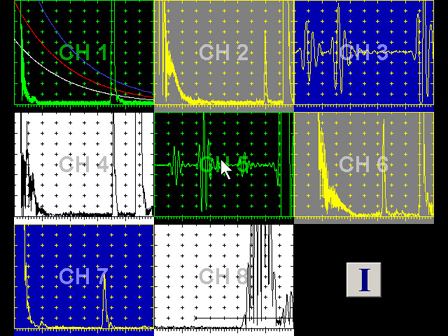

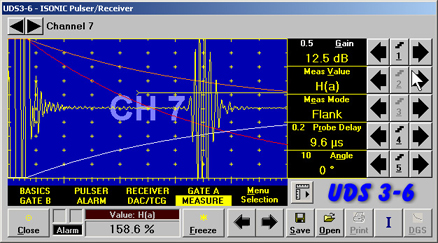

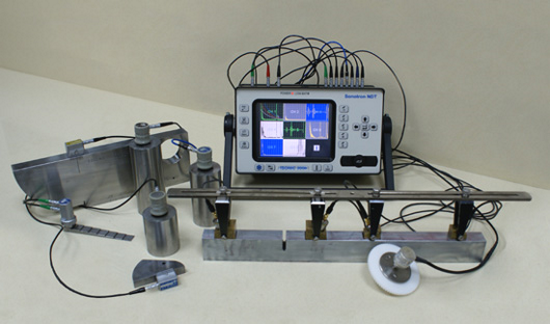

ISONIC 2008 carries 8 identical UDS 3-6 pulsing-receiving channels. Most of parameters such as gain, filter settings, pulse duration, display mode, delay, range, ultrasound velocity, etc are settled individually
per channel. Just the Firing Level (the amplitude of the initial pulse) and PRF (Pulse Repletion frequency) are common for all channels. Every channel may drive either single or dual element probe / probe pair
through either 1 or 2 probe terminals
Every channel carries its own signal digitizer (A/D Converter)
The highest scanning speed may be achieved through the parallel pulsing, receiving, signal digitizing, and recording by up to 8 channels; the measures for avoiding of the cross-talking through the material
to be taken whilst placing simultaneously fired probes on the object under test – the probes should be separated properly
Most compact probes placement on the material with no cross-talking may be provided when using the sequential pulsing, receiving, signal digitizing, and recording. Sequential pulsing-receiving also prolongs battery life
There are various color combinations available for distinguishing the channel A-Scans. This is especially useful for the multiple A-Scan observation
There are two types of calibration files that may be created by ISONIC 2008 containing the instrument settings for either one channel or for 8 channels simultaneously
For the number of inspection applications the operators need just to observe several A-Scans simultaneously obtaining an audible alarm in case of finding situation. The typical example of such application is
the multi-channel dual rail inspection, which is illustrated by the video below:
Note: In order to accelerate the data stream the video above is linked to the Youtube. In case the YouTube may not be accessed from your location please use the link below

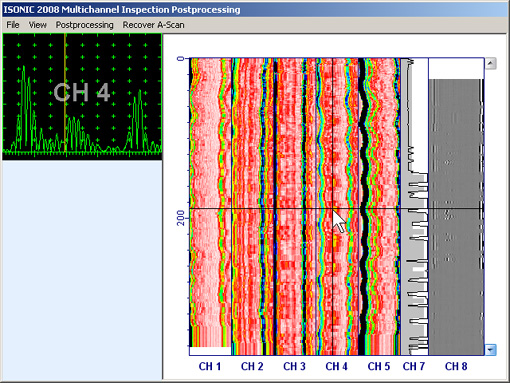

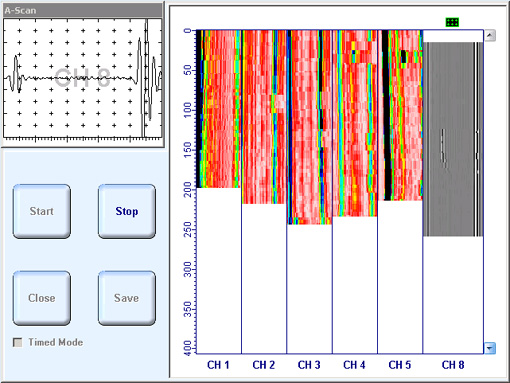

Multi-Channel Recording: Strip Chart
The multi-channel record (strip chart) may include several strips of the following types:
TOFD
Map

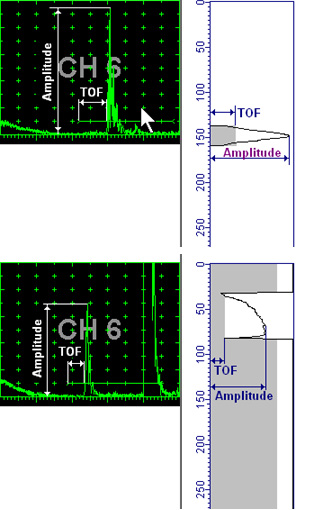

Amplitude/TOF Pulse Echo
Coupling

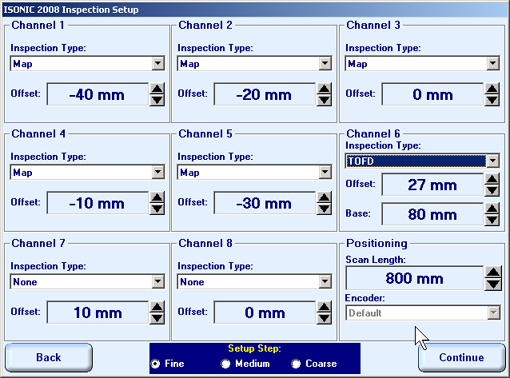

The strips may appear in any combination created by an operator according to the inspection procedure. Positioning of the probes in the scanner relatively to each other – offset – to be keyed in at the
pre-scanning stage - this allows aligning of the strips

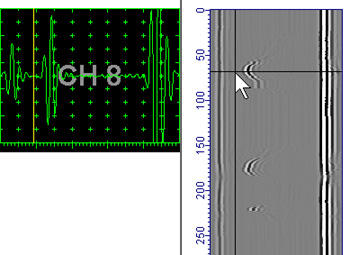

The 256 gray levels TOFD strip represents a sequence of RF A-Scans whereas the brightness of points for each horizontal line is modulated according to the corresponding signal level
The main use of the TOFD strip is the recording of TOFD channels data for weld inspection. TOFD strip is also useful for the recording of CHIME inspections and for some other applications
where the observation and recording of RF B-Scan is necessary

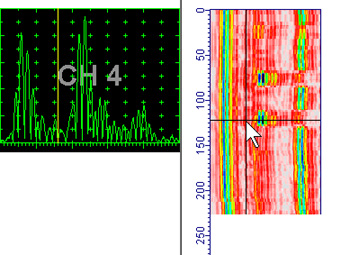

The 256 Colors Palette Map Strip represents the sequence of A-Scans whereas the color of points for each horizontal line is coded according to the corresponding signal level
The main use of the Map Strip is the recording of pulse echo inspections using either longitudinal, shear, surface, or guided waves
The Amplitude / TOF Pulse Echo Strip (PE Strip) represents the peak amplitude and the time of flight for signals matching with Gate and exceeding it’s threshold level
The position of the Amplitude Line on the strip is proportional to the signal height. The echo amplitude equal or exceeding 100% of the A-Scan height brings the Amplitude Line trace to the full strip width level
The width of the gray Time of Flight (TOF) Rectangle is proportional to the signal position in the Gate. For the signals, which’s time of flight measurement point matches with the Gate
end width of the gray TOF Rectangle is equal to the full strip width
For the defects signals followed by the strong geometry echoes the Amplitude Line may represent either first or maximal signal amplitude depending on operator's choice while the width of the gray
Time of Flight (TOF) Rectangle will represent the position of the first signal crossing gate level
The Amplitude / TOF Pulse Echo Strip may be used for the thickness/corrosion profiling and for the variety of flaw detection tasks
The Coupling Strip is formed through comparing of the amplitude of the reference signal with the gate threshold. The green Sufficient Coupling
record is provided for the signals exceeding the gate threshold; the red Insufficient Coupling record is provided in the opposite case
Both time-based and true-to-location encoded strip chart creating is available
Observation of the A-Scan is possible for every channel whilst scanning. The strip accompanied with the A-Scan is
marked with . To observe the A-Scan related to another strip it is necessary just to click on it
The position of each probe along the scanning line is counted whilst forming the strip chart through the use of appropriate offset values keyed in at
the pre-scanning stage. As a result the same defect / imperfection detected by the different probes will be indicated at the same longitudinal position in each
corresponding strip
The complete sequences of A-Scans for each strip is recorded during the scanning making the inspection fully compatible with the ASME 2235-9 Code Case for radiography replacement and other national and
international codes. Upon scanning is completed the strip chart accompanied with the entire raw data and instrument settings may be stored into a file
The exemplary videos below illustrate the multichannel weld inspection and in-maintenance inspection of the drilling pipes with the strip chart data recording and imaging:
Note: In order to accelerate the data stream the videos above are linked to the Youtube. In case the YouTube may not be accessed from your location please use the link below
Postrocessing of Multi-Channel Scanning Data
Postprocessing is featured with:
Previewing and scrolling of the whole strip chart
Recovery of the A-Scans for each channel
Composing the combination of the strips visible simultaneously
Conversion of the Map Strip into the Amplitude / TOF Pulse Echo Strip and reversal
Varying the Region of Interest (Gate) settings for every Amplitude / TOF Pulse Echo Strip
Marking defects and generating of the Strip Chart Inspection Report
Postprocessing each strip individually using the applicable modality routine either TOFD, CB-Scan, or Thickness Profile including the full scope of suitable procedures
such as defects sizing, snap-shoots, off-line Gain correction, filtering, etc
Converting the combination of few strips into the thickness, distance or amplitude C-Scan with further C-Scan analysis
ISONIC AVT Scan - Material Thickness Measurement and Recording Based on Automatic Determining of Ultrasound Velocity
For the UT applications related to the thickness probing and recording on the materials with inhomogeneous structure it is
necessary to probe ultrasound velocity at every point of the probe trace prior to taking the thickness reading
Corrosion detection in the paper mills steam drums represents the typical example for such inspection problem, which is resolvable with the use of
ISONIC AVT Scan (Automatic Ultrasound Velocity Determining and Thickness Scanning and Recording) Technology,
which is implemented through the dual channel operation of ISONIC 2008 instrument with use of specially designed AVT Scan probe
The AVT Scan probe carries:
two single element longitudinal wave angle beam transducers for the pitch-cath generating and receiving lateral wave: this signal used for the automatic determining of ultrasound
velocity in the thickness probing point
dual element straight beam transducer for thickness measurement
For the continuous line scanning and recording the AVTScan probe may be fitted into the cart with 4 magnetic wheels, which are easy adjustable to the surface curvature. True-to-location recording
is possible upon the incremental encoder is attached to the scanning cart
Whilst scanning there is 100% raw data caprtuing and recording provided for both channels along with imaging of the thickness profile of the materials and ultrasound velocity distribution along the scanning line
Freely distributable ISONIC AVT Scan PP postprocessing package for the PC allows play back of all captured A-Scans, off-line Gain, Gate manipulation, defects sizing, exporting data into MS Excel®, creating of editable inspection report in MS Word® format, etc
Beside ISONIC 2008 instrument ISONIC AVT Inspection Scan SW Package may run in the PA units, namely: ISONIC 2010 unit equipped with two conventional channels and ISONIC 3510
The inspection pricinples, calibration and scanning process are illustrated by the video below:
Note: In order to accelerate the data stream the video above is linked to the Youtube. In case the YouTube may not be accessed from your location please use the link below
UT over IP - Remote Control and Data Acquisition
Thanks to the Client – Server software architecture ISONIC 2008 may be controlled remotely from a regular PC running under Win’XP, 7, 8, 10. There is no need in the special software for that purpose, just download and install in the PC the same software as used in the instrument
The software installed in the PC should be of the same release as the software running in the ISONIC 2008 and correspond to the instrument model
Installing the Instrument Software in the PC

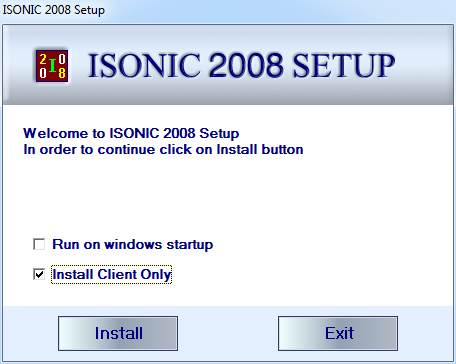

Upon started the installation routine generates the dialogue as below on the PC screen:
It is necessary to check Install client only and uncheck Run on windows startup option then to click on Install button. Further actions are taken by the installation routine automatically
Controlling the Instrument from the PC
The instrument and the computer should be connected to the same LAN or Wi-Fi and obtain the IPs automatically. The initial Startup menu (Start Screen) appearing upon powering the instrument on and booting up completed
should be kept on the unit's screen at the time of establishing the remote connection and control. In the computer the same software should be launched: on appearing of the Startup menu it is necessary to select the instrument
to be controlled from the list of the available Idle units:
Once the connection is established ISONIC 2008 unit enters into the slave mode being connected to the probes and encoder and running the just the server routine while the computer performs full control of the instrument,
data acquisition, processing, and storage on the local drives through running of the client software in the same manner as the instrument does when operating autonomously
ISONIC 2008 carries 8 identical UDS 3-6 pulsing-receiving channels. Most of parameters such as gain, filter settings, pulse duration, display mode, delay, range, ultrasound velocity, etc are settled individually
per channel. Just the Firing Level (the amplitude of the initial pulse) and PRF (Pulse Repletion frequency) are common for all channels. Every channel may drive either single or dual element probe / probe pair
through either 1 or 2 probe terminals
. To observe the A-Scan related to another strip it is necessary just to click on it
