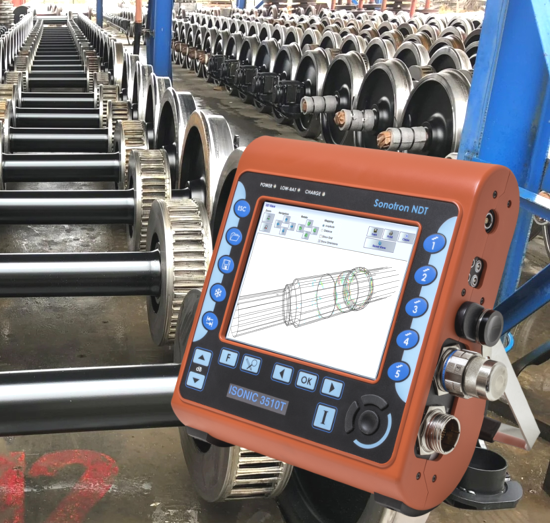

The outer shape of the simple and medium complicity geometry parts may be entered right in the instrument or in the PC through the simple dialogue. For the complex shape geometry parts the templates of their outer shapes may be imported from the CAD drawings The inspection is performed through the sectorial scan compression wave insonification of the material by means of PA probe situated at the accessible side end surface of the part. Whilst implementing the desired sequence of pulsing receiving cycles (Scan Plan) each focal low is characterized by the individually settled focal point “travelling” along the outer surface of the part, and the corresponding time base; the sensitivity is equalized within entire insonified section of the material through use of the independent mechanisms of Angle Gain Compensation (AGC) and DAC/TCG acting simultaneously thanks to the unique ability of ISONIC Series PA instruments: the DAC / TCG mechanism is used purely for compensating the dependency of echo amplitude on the material travel distance while the feature of varying Gain per Focal Law voluntarily is utilized just for the forming of easy-reproducible AGC plan. Both the DAC / TCG and AGC plans are created independently on each other with use of the same set of reference reflectors. The sharp focusing is provided through utilizing the full aperture for the firing and receiving of the signals (depending on the PA probe and adaptor used - up to 128:128) At last the whole volume of the material is inspected in one revolution of the part itself or of the PA probe moving around the end surface. The homogeneous sensitivity and true-to-geometry cross-sectional coverage and imaging are provided so for every radial position of the PA probe along with 100% raw data capturing and “on-the-fly” forming of the unfolded C-Scan imaging. On completing the scanning revolution the 3D image of the part and automatically created editable defect list are available immediately. True-to-geometry imaging allows easy distinguishing between the defects indications and geometry echoes For the complex geometry large shafts the various scan plans for several regions of interest may be created separately and implemented simultaneously then through the use of MULTGROUP mode
ISONIC EXPERT SHAFT software is featured with:
The video below shows the approach to the inspection of complex geometry hollow stud bolts and shafts for the fatigue cracks in the thread areas and the adjacent part of the bolt wall. Comparing to the usually used magnetic particle inspection (MPI) the PAUT EXPERT SHAFT solution is characterized by significantly lower time consumption, higher probability of detection and reliability The video below shows an approach to the quick preparing of the provisional calibration block / performance demonstration block for the inspection of large and heavy shafts and the corrersponding instrument operation The video below shows the embodiment for the encoded scanning frame for shaft inspection and its use of the calibration / performance demonstration block The video below illustrates the inspection of the pulp mills machine shaft for the fatigue cracks The video below illustrates detection of the transversal reference reflectors in the bolt The video below illustrates some postprocessing functions for the PA UT data captured for the shaft with involvement of complimentary VAUT technology Note: In order to accelerate the data stream the videos above are linked to the Youtube. In case the YouTube may not be accessed from your location please use the link below DOWNLOAD AND PLAYBACK THE EXEMPLARY INSTRUMENTS FILES
|
