PA UT (PAUT): VLFS CU - Vertical Line Focusing Scanning and Imaging of Tubular Parts and Materials

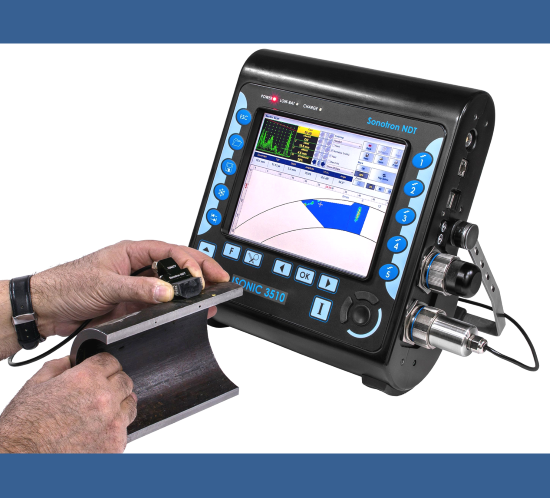

ISONIC VLFS CU allows performing of the Vertical Line Focusing Scanning and Imaging of the tubular parts and materials

The typical applications relate to theinspection of:
    • narrow gap heavy thickness longitudinal welds
    • ERW and EBW longitudinal welds in tubes
    • seamless tubes
    • etc

PDF Brochure

This inspection software option is available for the ISONIC 3510, ISONIC 2010, and ISONIC 2009 UPA Scope instruments and featured with:
  • Built-In Ray Tracer - Scanning Pattern (Scan Plan) Design
  • Intuitive Image Guided PA Pulser Receiver with Beam Forming View
  • Automatic Curvature Correction for the wedges with contoured contact face
  • True-To-Geometry Cross-Sectional Coverage (sectorial and / or linear) and line scanning along the desired line (for example, fusion line) either encoded or time based
  • "On-the-fly" True-To-Geometry Whole Volume / Region of Interest (ROI) Overlay Volume Corrected Imaging:
    • Cross Sectional Slices
    • Top (C-Scan) View - Unfolded
    • Side View
    • End View
    • 3D View
  • DAC / TCG Data / Image Normalization
  • Independent on TCG Angle Gain Compensation / Gain Per Focal Law Correction
  • Automatic detecting of the maximal echo A-Scan among the plurarity implemented for providing of the cross-sectional material coverage
  • Automatic Coupling Monitor
  • 100% Raw Data Capturing
  • FMC/TFM Protocol for the data acquisition and imaging
  • Automatic Defects Alarming Upon C-Scan Acquisition Completed
  • Automatic Creation of Editable Defects List
  • Comprehensive Postrpocessing Toolkit Including:
    • Recovery and Evaluation of the Captured A-Scans from the Recorded Cross Sectional Views and C-Scans
    • Recovery of the Cross Sectional Views from the Recorded C-Scans
    • Converting Recorded C-Scans or their Segments into 3D Images
    • Off-Line Gain Manipulation
    • Off-Line DAC Normalization of the Recorded Images / DAC Evaluation
    • Numerous Filtering / Reject Options ( by Geometry / Position / By Amplitude db-toDAC / etc ) and Regeneration of the Corresponding of Editable Defects List and Storing it into a Separate FIle
    • Defects Sizing
    • Automatic creating of inspection reports - hard copy / PDF File

The video below illustrates the ability of ISONIC series PA instruments to generate TFM images for the defects in the long seams of the "seamless" pipes and perform the sizing of the reflectors with high precision; the said ability is provided thanks to the 100% raw data capturing when the primary A-Scans for each element of the receiving aperture have been stored for each implemented focal law:



Note: In order to accelerate the data stream the video above is linked to the Youtube. In case the YouTube may not be accessed from your location please use the links below



DOWNLOAD AND PLAYBACK THE EXEMPLARY INSTRUMENTS FILES

The archive comprices some Exemplary Instrument Files for this application

The files should be extracted from the archive and played in the regular PC running under Win'XP, 7, 8, 10 with use of the freely distributable ISONIC PA Office software package
