PA UT (PAUT): Fillet / TKY Welds



ISONIC EXPERT FILLET software application was created for the inspection of fillet, Tee- , TKY- welds, and the like, with use of wedged linear array probes situated on the flange or web surface. It is also well suitable for the inspection of the pipe repair sleeve circumferential welds with the skewed-fillet-like cross section


PDF Brochure

ISONIC EXPERT FILLET CU software application was created for the inspection of fillet, Tee- , TKY- welds, and the like with use of wedged linear array probes situated on the curved flange surface


PDF Brochure

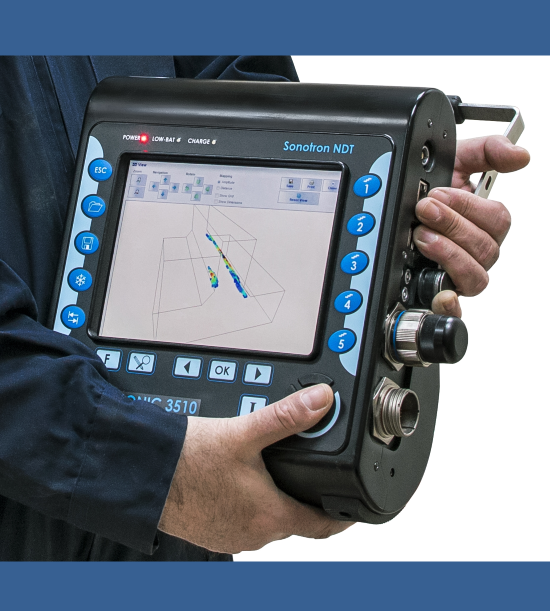

Both software options are available for the ISONIC 3510T, ISONIC 3510, ISONIC 2010, and ISONIC 2009 UPA Scope instruments and featured with:
  • True-To-Geometry Weld Overlay Volume Corrected Imaging - Cross Sectional and Top (C-Scan)- / Side- / End- View and 3D
  • Sector-Scan Cross Sectional Coverage
  • Intuitive Image Guided PA Pulser Receiver with Beam Forming View
  • DAC / TCG Normalization
  • Built-In Weld Geometry Editor and Ray Tracer - Scanning Pattern Design
  • Automatic Curvature Correction for the wedges with contoured contact face (FILLET CU)
  • Independent on TCG Angle Gain Compensation / Gain Per Focal Law Correction
  • Automatic Coupling Monitor
  • Automatic Scanning Integrity Monitor
  • Detection of the defects in the parent material simultaneously with weld inspection
  • Encoded and Time based C-Scan
  • 100% Raw Data Capturing
  • FMC/TFM Protocol for the data acquisition and imaging
  • Automatic Defects Alarming Upon C-Scan Acquisition Completed
  • Automatic Creation of Editable Defects List
  • Automatic Creating of Scanning Integrity Report Upon C-Scan Acquisition Completed
  • Comprehensive Postrpocessing Toolkit Including:
    • Recovery and Evaluation of Captured A-Scans from the Recorded Cross Sectional Views (Sector Scan) and C-Scans
    • Recovery of the Cross Sectional Views from the Recorded C-Scan data
    • Converting Recorded C-Scans or their Segments into 3D Images
    • Off-Line Gain Manipulation
    • Off-Line DAC to TCG / TCG to DAC toggling for all types of stored files (A-Scans, cross-sectional views, C-Scans, etc)
    • Off-Line DAC Normalization of the Recorded Images / DAC Evaluation
    • Off-Line editing of Angle Gain Compensation / Gain per Shot Correction applied to the stored the Cross-sectional Views / C-Scan data
    • Numerous Filtering / Reject Options ( by Geometry / Position / By Amplitude db-toDAC / etc ) and Regeneration of the Corresponding of Editable Defects List and Storing it into a Separate File
    • Defects Sizing
    • Automatic Creation of Defect List and Storing it Into a Separate File
    • Automatic Creating of Scanning Integrity Report
    • Automatic creating of inspection reports - hard copy / PDF File

The movie below illustrate in details the examples of Scan Plan creation for the Fillet / TKY welds followed by the inspection





The movies below illustrate inspection of fillet welds with use of the ISONIC 3510 instrument providing the ability of either

  • toggling between the True-to-Geometry (True-to-Shape) S-Scan and live FMC/TFM coverage and imaging at any moment whilst scanning
or
  • performing both coverage strategies at parallel along with recording and displaying the live images
The same ability is present in the ISONIC 2010 units manufactured after April 30, 2017 and ISONIC 2009 UPA Scope units manufactured after May 31, 2017:









Availability both complimentary coverage strategies such as True-To-Geometry S-Scan and live FMC/TFM in the same instrument at the same time further improves the versatility of use, the data interpretation, and the reliability of ultrasonic inspections

Some other illustrative videos are below











ISONIC EXPERT FILLET SW application initially created for the weld inspection, was found fully applicable to other tasks, for example – detection of fatigue cracks in the web-to-outboard end pad fillet radius at wing attach of an aircraft:



The videos below demonstrate the ability of ISONIC series PA instruments to generate TFM images for the defects in the fillet welds off-line out of earlier stored True-To-Geometry S-Scan data files; this is possible thanks to 100% raw data capturing when the primary A-Scans for each element of the receiving aperture are recorded for each implemented focal law:





Note: In order to accelerate the data stream the videos above are linked to the Youtube. In case the YouTube may not be accessed from your location please use the links below

DOWNLOAD AND PLAYBACK THE EXEMPLARY INSTRUMENTS FILES

The archive comprises some Exemplary Instrument Files for this application

The files should be extracted from the archive and played in the regular PC running under Win'XP, 7, 8, 10, 11 with use of the freely distributable ISONIC PA Office software package
