PA UT (PAUT): Carbon Fiber - CFRP

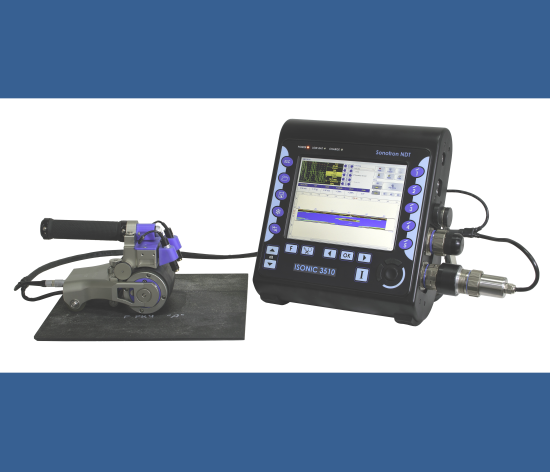

Inspection of the carbon fiber (CFRP) panels for the debonding, porosity, and other structural defects is performed by the ISONIC 3510, ISONIC 2010, and ISONIC 2009 UPA Scope instruments with use of the linear array probes equipped with the solid delay line or the rolling linear array probes with the soft contact surface protector and water-filled delay line. The standard 0-deg linear scan (B-Scan) mode provides the cross-sectional coverage. The line scanning either encoded or time-based provide the volume coverage along the scanning line within entire width of the PA probe

The following features are provided:
  • Scanning Pattern (Scan Plan) Design
  • Intuitive Image Guided PA Pulser Receiver with Beam Forming View
  • True-To-Geometry 0-deg Cross-Sectional Coverage of the material and line scanning along the part either encoded or time based
  • "On-the-fly" True-To-Geometry Material Overlay Volume Corrected Imaging:
    • Cross Sectional Slices
    • Top (C-Scan) View
    • Side View
    • End View
    • 3D View
  • DAC / TCG Data / Image Normalization
  • Independent on TCG Angle Gain Per Focal Law Correction
  • 100% Raw Data Capturing
  • Automatic Defects Alarming Upon C-Scan Acquisition Completed
  • Automatic Creation of Editable Defects List
  • Comprehensive Postrpocessing Toolkit Including:
    • Recovery and Evaluation of the Captured A-Scans from the Recorded Cross Sectional Views and C-Scans
    • Recovery of the Cross Sectional Views from the Recorded C-Scans
    • Converting Recorded C-Scans or their Segments into 3D Images
    • Off-Line Gain Manipulation
    • Off-Line DAC Normalization of the Recorded Images / DAC Evaluation
    • Numerous Filtering / Reject Options ( by Geometry / Position / By Amplitude db-toDAC / etc ) and Regeneration of the Corresponding of Editable Defects List and Storing it into a Separate FIle
    • Defects Sizing
    • Automatic creating of inspection reports - hard copy / PDF File

PDF Brochure

The video below illustrates 0-deg compression wave scaning of the CFRP panel with implanted defects - scanning, 100% raw data capturing, C-Scan and 3D imaging with the use of draw wire encoder SK 2001108 PA

The video below illustrates 0-deg compression wave scaning of the CFRP panel using the rolling probe

The movies below illustrates the scanning of CFRP panels calibration blocks with flat bottom holes, the operator's observations and the evelauation at the postprocessing stage

The movie below illustrates detection of the laminations in the CFRP blocks with the use of ISONIC 3510 instrument

Note: In order to accelerate the data stream the videos above are linked to the Youtube. In case the YouTube may not be accessed from your location please use the link below


The archive comprices some Exemplary Instrument Files for this application

The files should be extracted from the archive and played in the regular PC running under Win'XP, 7, 8, 10 with use of the freely distributable ISONIC PA Office software package
